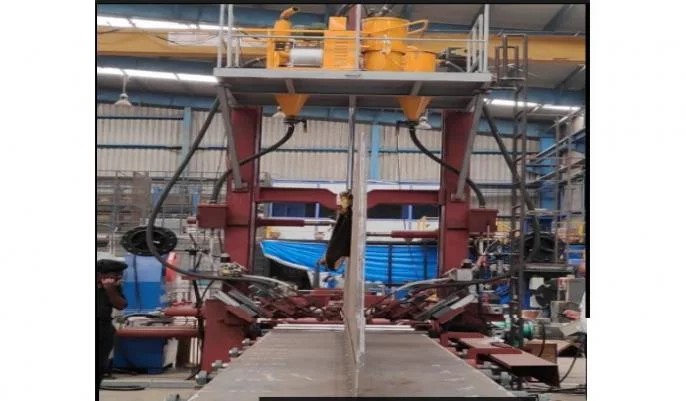

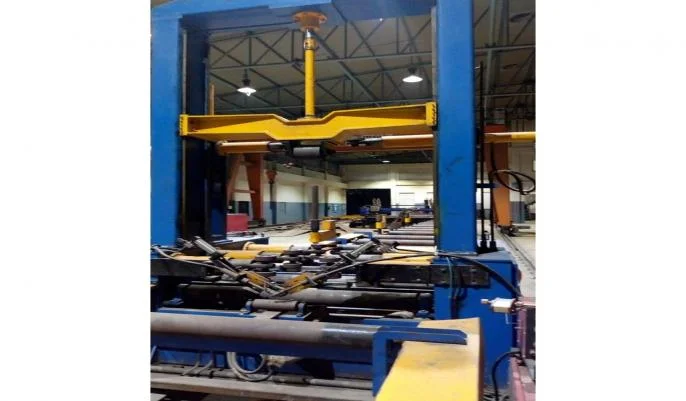

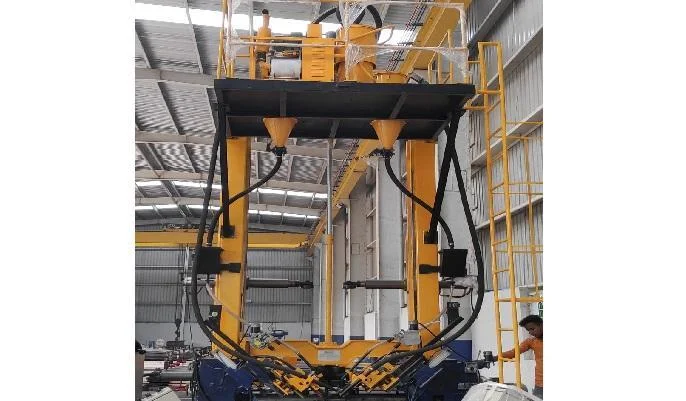

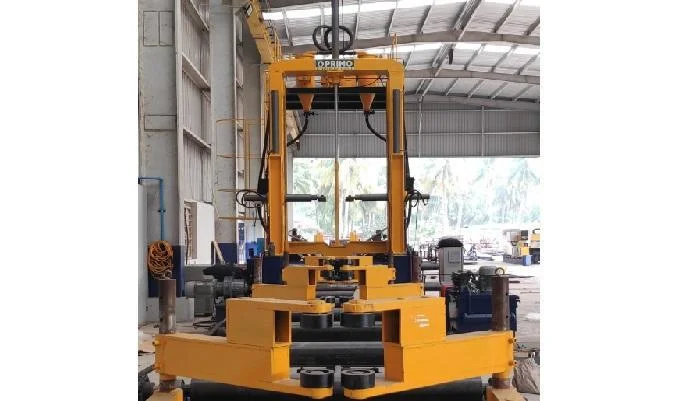

Vertical Plate Girder Fabrication Machine

Primo Automation’s Vertical Plate Girder Fabrication Machine delivers precision fabrication of heavy‑thickness plate girders and I‑beams from precut flange and web plates. With vertical clamping, mechanized alignment, and twin‑wire submerged arc welding (SAW), it ensures high productivity, reduced rework, and consistent weld quality for demanding projects in railway bridges, highways, boilers, and refineries.

Since 1999, Primo has supplied over 750 beam welding lines worldwide, providing turnkey solutions for pre‑engineered buildings and heavy structural industries. By minimizing manual skill dependency and enabling scalable throughput, the Plate Girder Fabrication Machine guarantees reliable performance, global standards compliance, and long‑term ROI. Its proven design supports industries where precision, throughput, and weld integrity are critical.

Fabricate Stronger Girders, Faster with PRIMO

Transform Your Fabrication Line Now.

Get Quotation

Call us Now +91 96000 45030

Vertical Plate Girder Fabrication Machine Specifications :

Process / Configuration

Submerged Arc Welding of Plate Girder Beams.

Vertical I‑beam format.

Multi‑layer welding for higher thickness.

Model Options

PAS‑VBM‑2500.

PAS‑VBM‑3000.

Machine Controls & Features

Standard & Optional Features Offered:

PLC + touch screen HMI.
Hydraulic clamping and positioning.
Automatic beam alignment.
Warpage control.
Flux recovery.
Twin wire SAW torches.
Recipe based parameter control.

Modules offered in Vertical Plate Girder Fabrication Machine

Standard Modules of Vertical Plate Girder Fabrication Machine:

Inlet & outlet conveyors – smooth plate handling
Girder assembly & tacking station – precise alignment.
Full welding station – twin wire SAW.
Torch guiding mechanism – accurate weld path.
Flux storage & recovery – recycle flux.
Hydraulic power pack – centralized supply.
Operator control panel – recipe based programming.

Optional Upgrades for Vertical Plate Girder Fabrication Machine:

Laser seam tracking – automatic correction.
Multi layer programming – higher thickness.
Beam straightening – distortion control.
IoT monitoring – predictive maintenance.
Automatic program selection – quick setup.
Automatic beam handling system – mechanized lifting and transfer
Integrated welding data logger – real time parameter recording for QA

Why Choose PRIMO ?

Why Us?

Engineering PRecision

Engineering Precision Machines built for accurate alignment, distortion control, and consistent weld quality across demanding girder projects.

Adaptive Automation

Flexible modules and smart upgrades — from seam tracking to beam handling — tailored to diverse production needs.

Global Reliability

Trusted worldwide with 750+ installations, delivering scalable solutions for bridges, boilers, refineries, and heavy structures.
