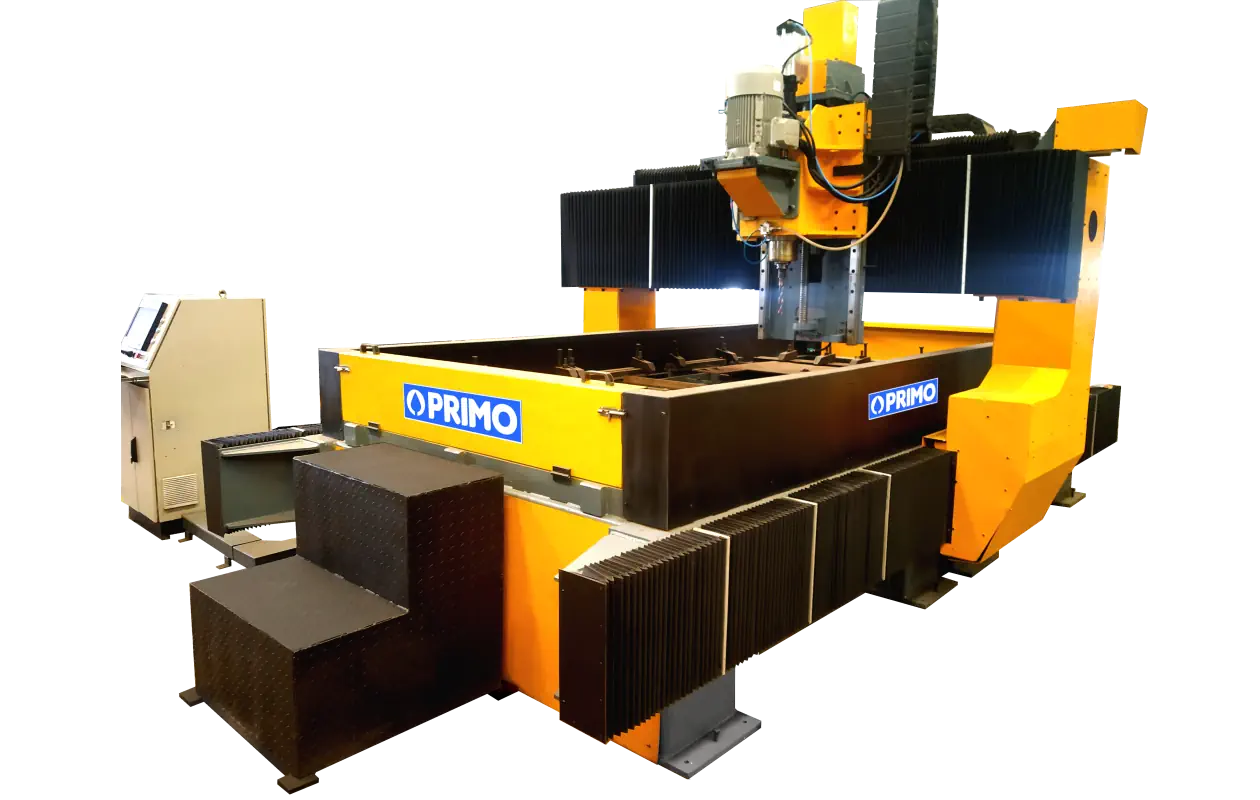

CNC Plate Drilling Machine

PRIMO’s CNC Plate Drilling Machine delivers ±0.05 mm accuracy for steel plates, H/I beams, and boiler tube sheets. With servo‑controlled CNC motion and G‑code compatibility, it eliminates manual marking and punching, boosting throughput and cutting labor costs. Trusted by PEB manufacturers, shipyards, and heavy engineering industries, PRIMO machines combine robust construction and modular upgrades for long‑term productivity.

Designed for structural steel and fabrication projects, PRIMO’s CNC Plate Drilling Machine ensures precision drilling across mild steel, stainless steel, copper, and aluminum plates. Available in models up to 3 × 12 m, it supports power plants, offshore engineering, and process equipment manufacturing. Since 1995, PRIMO has delivered global CNC solutions with reliability, scalability, and industry‑leading performance.

Driving Excellence in Automated Plate Drilling

Request Your CNC Plate Drilling Solution Now

Get Quotation

Call us Now +91 96000 45030

CNC Plate Drilling Machine Specifications :

Process / Configuration Type

CNC servo‑controlled drilling process.

Single or dual spindle setup (optional).

Hydraulic clamping for secure positioning.

Automatic X‑Y gantry movement.

Model Options

CPD‑1530 – 1.5 × 3.0 m

CPD‑3030 – 3.0 × 3.0 m

CPD‑3060 – 3.0 × 6.0 m

CPD‑30120 – 3.0 × 12.0 m

Machine Controls & Features

Standard & Optional Features Offered:

CNC / PLC control with touch screen interface
High speed drilling spindle with thru coolant function
BT/MT tool acceptance for HSS & carbide drills.
Plate thickness: up to 80 mm.
Hole diameter: up to 50 mm.
±0.05 mm pitch accuracy.
Heavy duty machine bed with coolant recirculation.
Chip evacuation system.

Modules offered in CNC Plate Drilling Machine

Standard Modules of CNC Plate Drilling Machine:

CNC/PLC control unit with 15‑inch touchscreen interface.
XYZ CNC gantry for precise, high‑speed positioning.
High speed drilling spindle unit.
Hydraulic plate clamping system.
Tool holder (BT/MT).
Coolant recirculation system.
Chip conveyor system.

Optional Upgrades for CNC Plate Drilling Machine:

Auto Tool Changer for faster tool management.
Dual drilling head for parallel operations.
Laser seam tracking for automatic correction.
IoT enabled monitoring for predictive maintenance.
Inline vision inspection for assured hole quality.
Automatic Plate Loading & Unloading System for safer, faster handling.
Integrated CAD/CAM Interface.

Why Choose PRIMO ?

Why Us?

Core Strengths

Primo has been serving fabrication industries since 1995, offering customized solutions and building robust, high quality machines trusted for durability and performance.

Global Credibility

With over 2000 customers worldwide and proven installations across Asia, Europe, and the Middle East, Primo stands as a globally recognized leader in CNC automation.

Customer Benefits

Primo ensures excellent after sales support, competitive pricing with strong ROI, and scalable technology designed to grow with future industry needs.
