CNC Beam Drilling Machine

PRIMO’s CNC Beam Drilling Machine delivers precision and speed for structural steel fabrication. Equipped with multi‑spindle carbide drilling heads and automated tool change systems, it ensures high throughput and reduced downtime. Trusted by EPC contractors, shipyards, and power projects, PRIMO machines are export‑ready, globally compliant, and engineered for durability in heavy fabrication environments.

Engineered for efficiency, PRIMO’s CNC Beam Drilling Machine handles beams up to 1000mm with high‑speed carbide tools and integrated material handling systems. Ideal for steel mills, fabrication yards, and infrastructure projects, it combines automation, accuracy, and scalability. With proven expertise in global CNC solutions, PRIMO empowers industries to achieve faster project cycles and consistent quality.

Empowering Structural Steel with CNC Beam Drilling

Get Your Customized Quote Today

Get Quotation

Call us Now +91 96000 45030

CNC Beam Drilling Machine Specifications :

Process / Configuration Type

Automatic CNC Controlled Three Spindle 10 Axis Beam Drilling Machine.

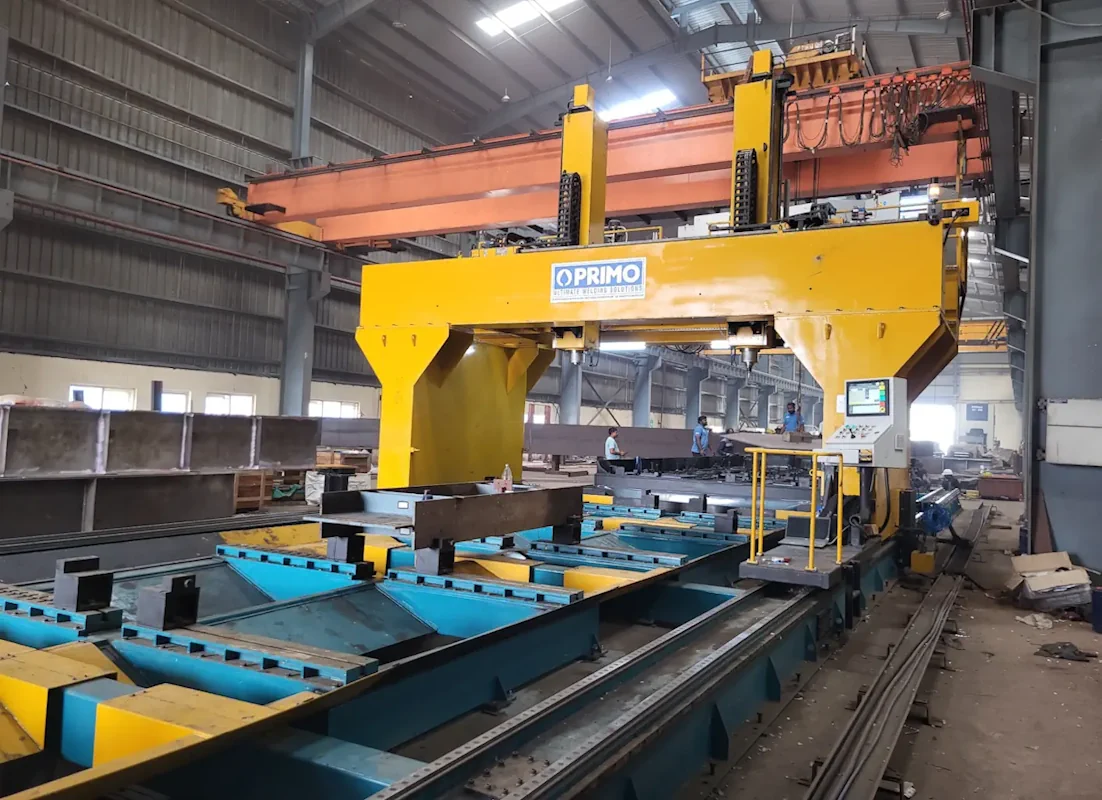

Automatic CNC Controlled Two Spindle 7 Axis Beam Drilling Machine.

Model Name / Number

BDM-3SP-1000 (3 Spindle with maximum beam size of 500 mm (Flange) x 1000 mm (Web)).

BDM-3SP-1200 (3 Spindle with maximum beam size of 800 mm x 1200 mm).

BDM-3SP-1500 (3 Spindle with maximum beam size of 1000 mm x 1500 mm).

BDM-2SP-1000 (2 Spindle with maximum beam size of 500 mm (Flange) x 1000 mm (Web)).

BDM-2SP-1200 (2 Spindle with maximum beam size of 800 mm x 1200 mm).

BDM-2SP-1500 (2 Spindle with maximum beam size of 1000 mm x 1500 mm).

Machine Controls & Features

Standard & Optional Features Offered:

Highly precise machine controls with PLC/CNC system.
Single‑window parameterization with recipe function for drill sizes and beam references.
High‑speed drilling supported by G‑Code programming.
Air‑hydro tool locking mechanism compatible with HSS, core, and carbide drills.
BT and MT tool acceptance with sleeves.
Optional HAAMP system eliminating manual beam edge referencing errors.
Scalable technology compared to conventional CNCs.
Precision ball screw and rack and pinion transmission in servo axes.

Modules offered in CNC Beam Drilling Machine

Standard Modules of CNC Beam Drilling Machine:

CNC/PLC control unit with 15‑inch touchscreen interface.
XYZ CNC gantry for precise, high‑speed positioning.
Collapsible covers protecting axes from dust and chips.
High‑speed drilling spindle with thru‑coolant for carbide tools.
Heavy‑duty machine bed with coolant recirculation and optional chip conveyor.
Beam clamping system with optional hydraulic upgrade.

Optional Upgrades for CNC Beam Drilling Machine:

Countersunk hole capability.
Auto Tool Change (ATC) for multiple drill sizes.
Options for 2‑spindle or 3‑spindle drilling heads.
Laser alignment system for accurate beam positioning.
IoT monitoring module for real‑time performance and predictive maintenance.
Optional automatic beam length measurement with real‑time reporting for accuracy and quality assurance.

Why Choose PRIMO ?

Why Us?

Proven Reliability

PRIMO machines are trusted across industries for consistent performance and long term durability.

Advanced Technology

Cutting edge CNC automation delivers precision, speed, and efficiency beyond manual methods.

Customer Centric Design

Built for ease of use, reduced operator fatigue, and faster ROI.

Need Assistance ?

Fix Up an Appointment

Kindly schedule an appointment with our team to discuss your specific requirements. We’ll be happy to craft a customized solution tailored to your company’s needs.

Download Brochure
