H Beam Welding Machine

H Beam Welding Machine

Our PEB H-Beam Fabrication Line is designed to transform individual steel plates into high-quality H-Beams with precision and efficiency. The process begins by loading pre-cut flange and web plates onto the inlet conveyor. These plates, cut from standard industrial steel using shearing or plasma/oxy-fuel methods, are then aligned and tack-welded into an H-configuration using our advanced hydraulic fit-up system for effortless assembly.

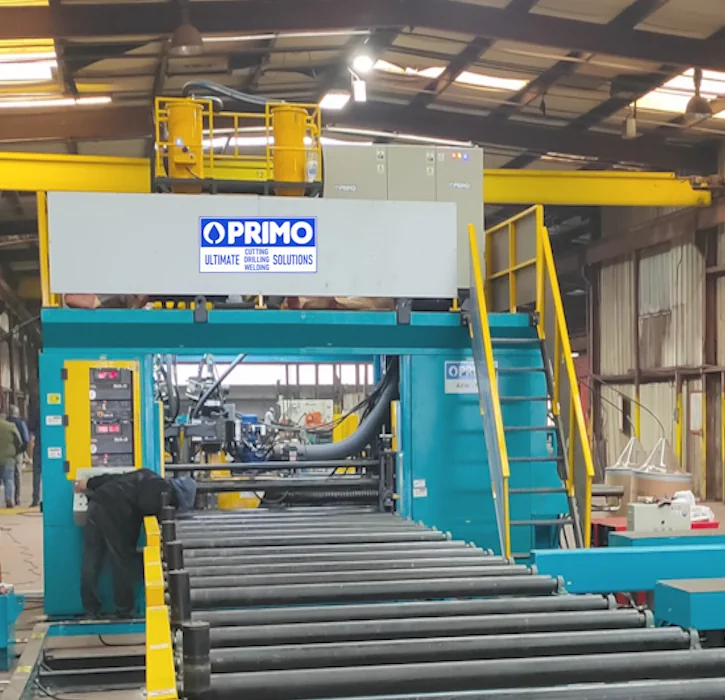

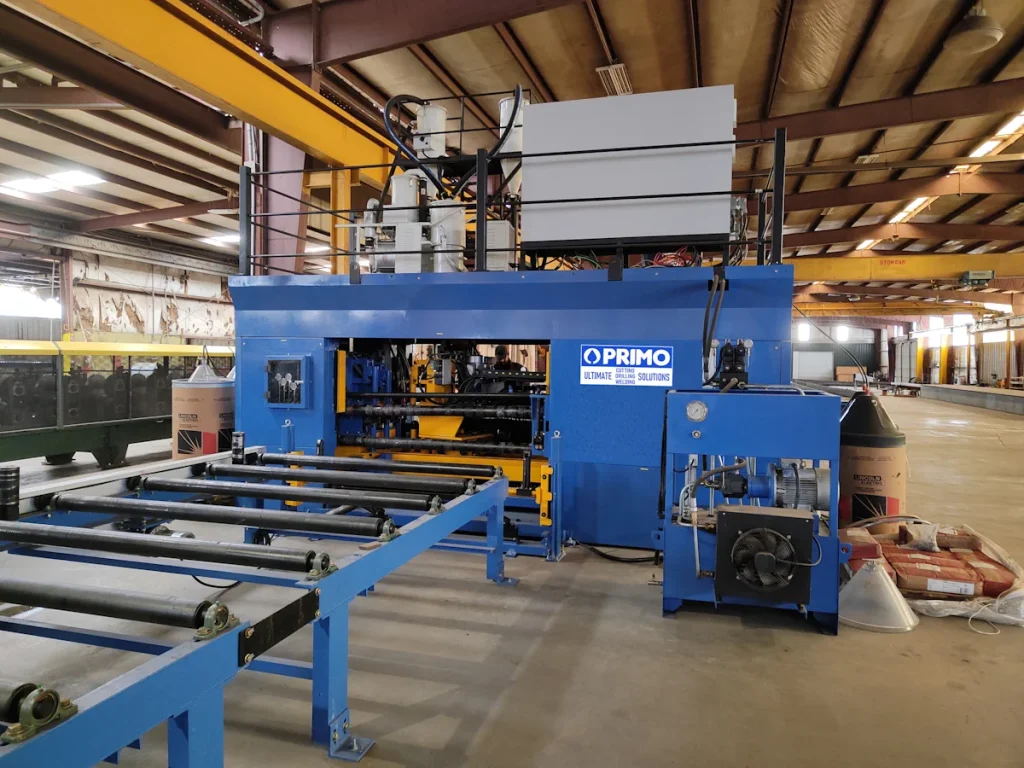

The tacked beam moves to the Pull-Through Welding Station (PTW)—the core of the fabrication line—where continuous, high-accuracy welding ensures structural integrity and superior finish. Equipped with automated adjustments and digital positioning, the system guarantees consistent quality while reducing manual effort.

Download Catalog

Serving Steel Fabrication Industry since 1999

Get Your Customized Quote Today

Get Quotation

Call us Now +91 96000 45030

H Beam Welding Machine Specifications :

Process / Configuration Type

Twin wire Submerged Arc Welding process for Beam fabrication /

Horizontal Beam Welding configuration

Model Name / Number

ABW Series :

ABW-2100, ABW-1850, ABW-1500, ABW-1200, ABW-1000

Machine Controls & Features

Standard Features :

Only entry Tacking is required. No full tacking needed.
Automatic aligning of beams inside Pull Thru Welder
Highly Precise Machine Controls such as Hydraulic Beam Clamping, Positioning and Pull Thru Beam transfer.
PLC Controlled Machine, Touch Screen HMI.
Advanced Single Window Parameterization / Recipe function for control of Welding Current, Beam Pull Thru Speed, Inlet & Outlet Conveyor speed & any other important parameters.

Optional Features Offered :

Modules offered in H Beam Welding Machine

Standard Modules of H Beam Welding Machine:

Rugged mechanical structure suitable for the machine model opted.
Hydraulic Power Pack with Beam clamping cylinders.
Mechanized controlled torch slides.
Submerged Arc Weldingv Power Sources suitable for the machine model opted.
PLC Control Panel for automatic machine sequencing.
Machine Operator Console unit.
Flux feeding & recovery system with heaters..
Inlet & Outlet conveyor modules.

Optional Upgrades for H Beam Welding Machine:

Advanced Laser seam tracking system for auto tracking SAW torch head.
Upgraded weld power source selection according to preference.
180 degree beam flipping & beam cross transfer device.
Additional Twin PTW option for enhanced beam production.
Ultra heavy duty beam welding machine upgrade feature.
Flange Loading Gantry system.
Flange Tilter unit.
Separate Tack welder & Flange Splice Welding modules.
