FEATURES

BRIEF MACHINE SPECIFICATION

Process Type

Automated Gas Tungsten Arc Welding – GTAW / Tungsten Inert Gas – TIG Welding

Model Name/Number

PAS-ATIG-100

Usage / Application

·  Can be Used for Hard facing of Triple Eccentric Valve body or Triple Offset Butterfly Valve - TOBV  and its accessories.

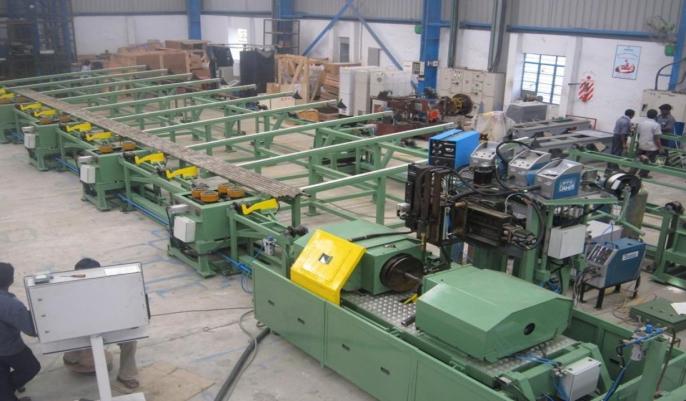

·  Hot Wire TIG Welding for Straight Tube Butt Welding System for boiler Tubes,

·  Automatic TIG Welding machine for Pump Case Welding system,

·  Thin Sheet Tig Welding machine for Longitudinal seam & Circular seam welding system,

·  ID & OD TIG Cladding of Pipes & Tubes for Oil & Gas Industries

·  Automatic TIG Ball Cladding of Valves.& its components.

·  TIG Cladding / Welding in Food Processing Industry for Hard facing of Screw barrels & Screw conveyors.

·  Stellite TIG Hard facing for wear resistant coating.

·  Oil & Gas Industries for Stabilizer Drill hard facing, Down head Drill hard facing.

·  Welding automation for TIG process.

·  Titanium Joint Welding for Defense & Space segments.

·  Specialized Surface coating using PTA welding process.

·  Narrow Grove Auto TIG Welding of various Joints.

·  Narrow Grove Hot Wire TIG Welding

Machine Controls / Features

·  Highly Precise Machine Controls,

·  PLC / CNC Controlled Welding Control,

·  Advanced Single Window Parameterization / Recipe function for control of Welding Current, Hot Wire Welding Current, Travel Speed, Gas flow rate, Hot /Cold Wire Feed rate & any other important parameters.

·  Optional G Code Programming functions,

·  Customized TIG Welding Torches to suit customer component requirements.

Machine Modules

·  Column & Boom TIG Welding Manipulator / Side beam carriage type TIG machine setup. Robotic TIG Welding System.

·  Mechanized Torch manipulation unit using servo / normal motorized for XYZ movements with customized stroke lengths. Continuous Rotation of Torch for special TIG Welding applications.

·  Main Arc & Hot Wire TIG Process Equipment.

·  Standard /  Customized TIG Welding Torch.

·  Machine Control Unit.

·  Component manipulator such as Tiltable Welding positioner, Turn Table, Rotary tables, Head & Tail Stock etc.

Welding Current Range

100 to 300 Amps

Automation Grade

Fully Automatic / Semi Automatic

Special Application Welding

Please discuss with our Sales / Technical team about your exact requirement to offer our Best available Welding Automation Solutions.
